Brand Name：koodsun
Solar Panel Type：Monocrystalline Silicon
System Type：Hybrid Solar Photovoltaic System
Battery Type：Lithium Ion
Application：Commercial
Controller Type：MPPT
Warranty：25 Years
Происхождение продукта :
Chinaпредмет номер :
KoodsunОплата :
380VВыходное напряжение :
380VВыходная частота :
50/60HZЦвет :
Hybrid Solar InverterProduct Description

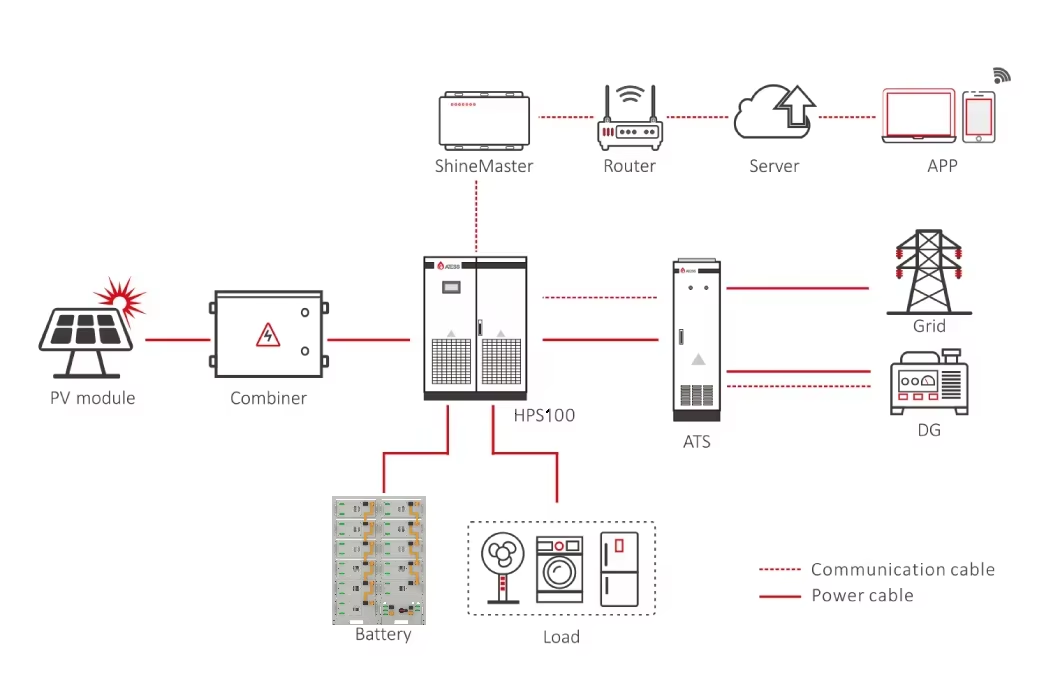

System Connection
System Components
Specification
| 150~500KW Energy Storage Solar Power System Components List | ||
| Model | Description | Quantity |
| Solar Panel | N type 630W solar panel | 230~769 pieces |
| PV Combiner Box | According to demand | 1~3 piece |

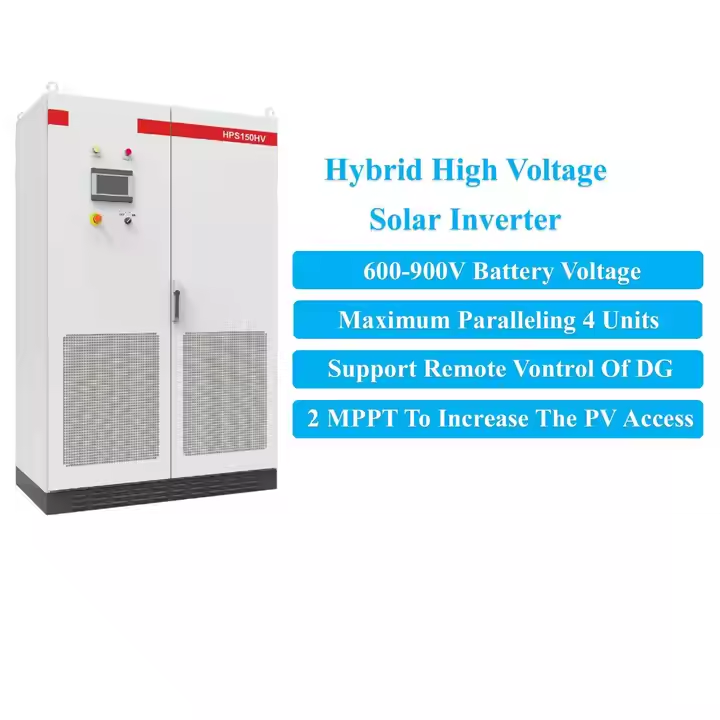

| Hybrid Inverter | ATESS 150KW EU/US Standard | 1~4 piece |
|
200.7KWH

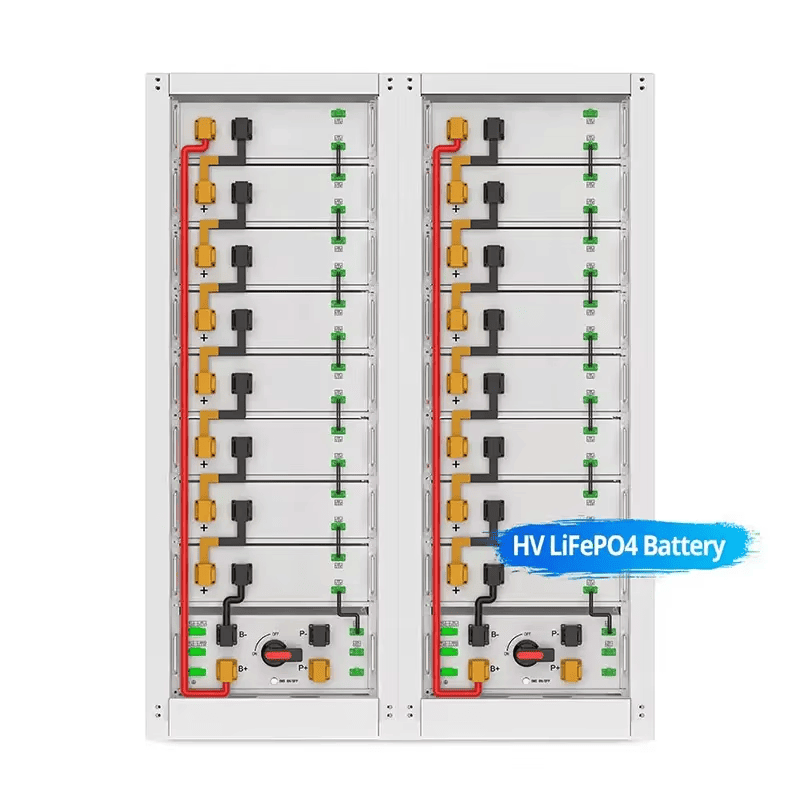

Lithium Battery System (adjustable)
|
GLiB-(51.2V 280AH)
|
1 ~8set |

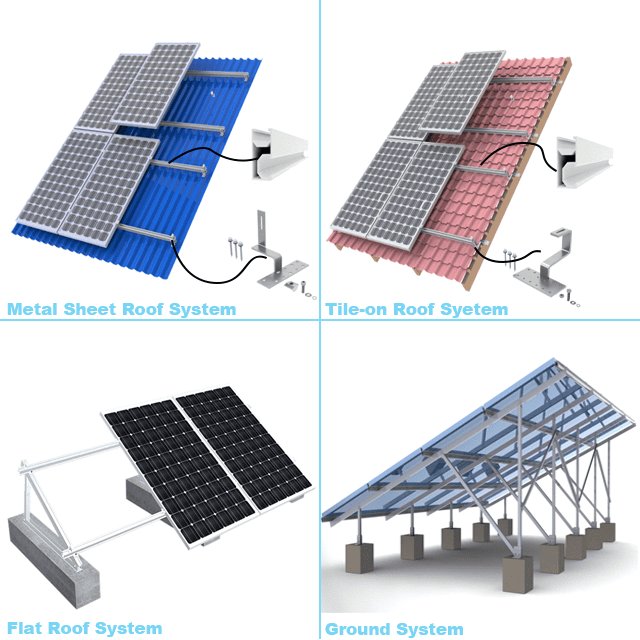

| Mounting Support | Pitched / flat roof, ground can be Customized | 1 set |
| PV Cable | Single-core 4mm2 PV cable | 1 set |
| DC Cable（Optional） | Single-core 25mm2 DC cable | 1200~4000meters |
| Connector | PV connector | 125~384 pairs |
Project
Packing & Delivery
Company Profile
FAQ
